Neev Fluidex Pvt. Ltd.

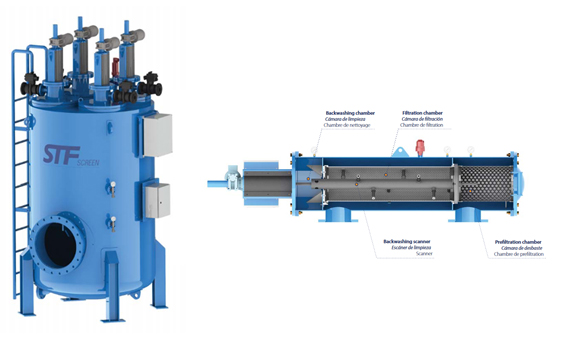

Its wide range of filtration degrees from 10 microns to 1000 microns and flow rates up to 1800 m3/hr.
These models can be grouped to form modular filtering stations working as a single unit with minimal head loss.
The cleaning mechanisms of the STF screen filter: automatic and manual.

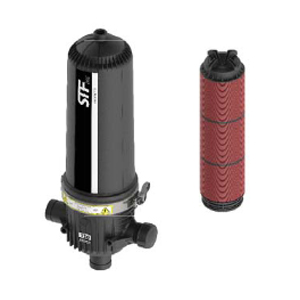

Manual Disc filter:

The manual filters produced in technical plastic are the perfect solution for small flows and high-quality water. Little maintenance is required as there are no moving parts, meaning they have an extended shelf life. They come with a large filter area and, as they are modular, can adapt perfectly to installation needs.

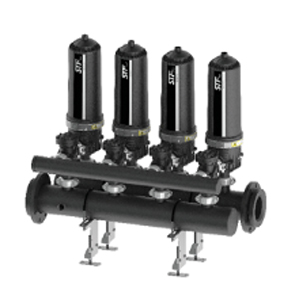

Automatic Disc filter:

The automatic filters produced in technical plastic are self-cleaning and require fewer cleaning cycles thanks to the delay device (cyclone effect), which means a considerable saving in water used. As these are modular, they can be adapted to a wide range of flows.

Hidroglabal can provide complete OMS for Irrigation projects
They have done a prestigious project with for Madhya Pradesh Govt & Karnataka Govt on Kalisindh river and Parvati river The Kalisindh covers area of 2500 Ha and done with project with Larsen & Toubro

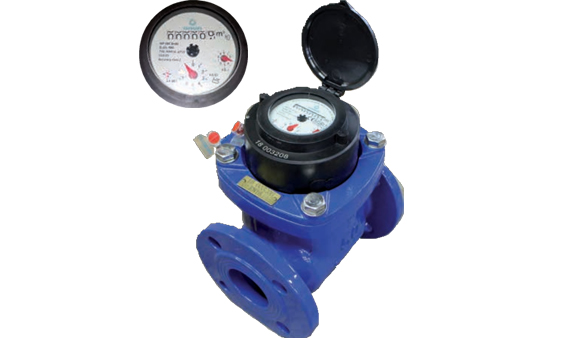

Woltman WP Gaer brand water meter has magnetic transmission and dry recording head for measuring water Features

The Valve protects the pumping station from Water hammer caused by sudden pump shut –off ( in case of power failure for example) The valve is assembled on a T junction of the main pipeline instantly opens when the pump stops relieving the returning high pressure wave. The valve closes slowly once the pressure returns to the static level . The valve also function as a pressure relief valve

Salient Feature:

Optimal solutions for surge protection, water loss reduction and pressure management, by integrating uniquely developed products with innovatively designed software..

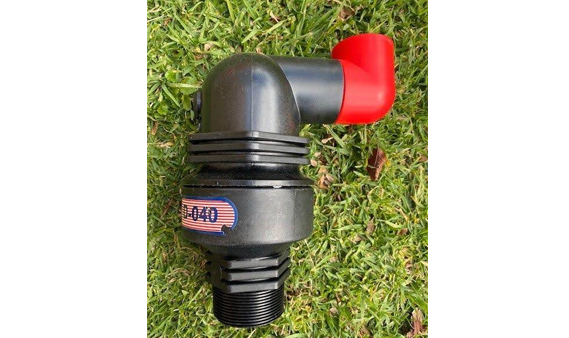

The Float is made of naturally-buoyant material. The float activates a sealing stripe, that closes the outlet when the water will fill the valve body.
On accumulation of air in the valve, loss of buoyancy causes the float to drop and to pull the strip, thus opening of the air outlet.
The Hydraulic sealing of the orifice will provides a drip-tight closure
A simple, light and reliable design for their installation in every type of water, gas or neutral fluid pipe.

Application:

For water distribution
For an efficient release of entrapped air from the pipeline, while the network is at normal working pressure.

Salient Feature:

Optimal solutions for surge protection, water loss reduction and pressure management, by integrating uniquely developed products with innovatively designed software.
Increases water supply efficiency, improves water utility operation, decreases costs, and extends the infrastructure's life span by providing condition-based maintenance

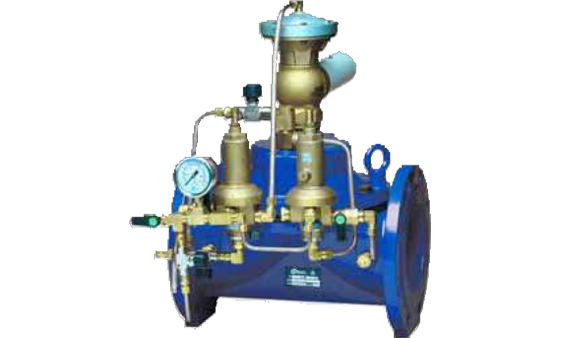

Hydraulically operated, diaphragm actuated for multi-function control of non-corrosive, non-abrasive fluids.
Simplicity of design promotes dependability, reduces down-time, facilitates service and extends the life of the valve.

Application:
