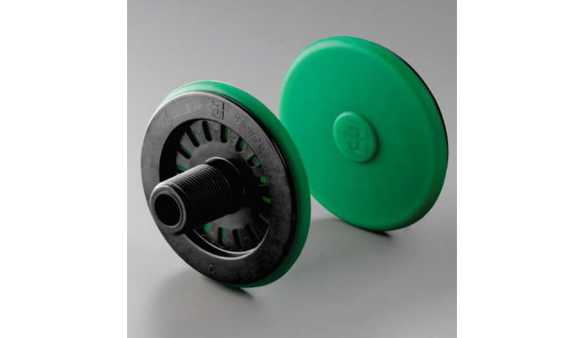

Jaeger Coarse Bubble Disc Diffusers
Salient Feature :
- Dia of 105 mm with no slits on membrane so no choking
- Air comes out from bottom so no accumulation of solids at bottom
- Mixing area coverage of 4 sq mt
- Air Flow rate up to 25 Nm3/hr and can be designed at
- SOTE 1.5 to 2%
- Connection size ¾” BSPT
- Mixing in Equalisation Tank
- Mixing in Sludge tanks
- Membrane in Silicon Rubber
- Body in 30% Glass Filled PP

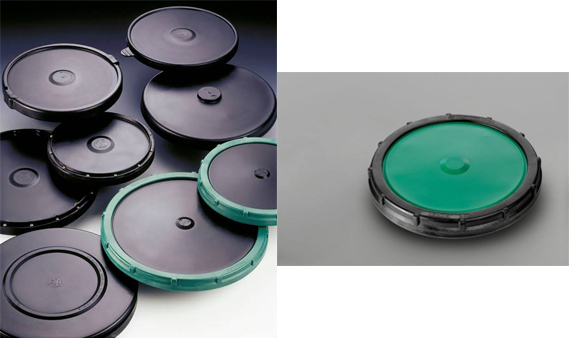

Jaeger Fine Bubble Disc Diffusers
Salient Feature :
- Dia of 9” ( HD 270) & 12” ( HD 340 )with slits of 1 to 1.25 mm
- Coverage area of 1 sq mt for 9” and 1.5 sq mt for 12”
- Design Air Flow rate up to 5 Nm3/hr for 9” and 8 Nm3/hr for 12”
- High SOTE up to 6 % per meter depth
- NRV as option to prevent backflow of sludge in air pipeline
- Connection size ¾” BSPT
- For maintaining DO in aeration tank
- Aeration in Aquaculture
- Membrane in EPDM or Silicon Rubber
- Body in 30% Glass Filled PP

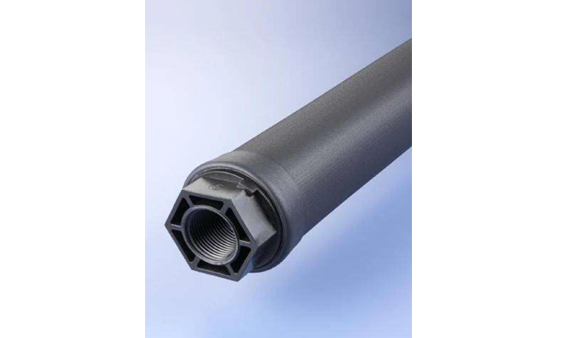

Jaeger Fine BubbleTube Diffuser TD
Salient Feature :
- Dia of 65 mm and 90 mm with slits of 1 to 1.25 mm
- Effective Length of 1000 mm
- Two grooved design to reduce pressure drop and
- Coverage area of 1.5 sq mt for 65 mm and 2.0 sq mt for 90 mm
- Design Air Flow up to 8 Nm3/hr for 65 mm and 12 Nm3/hr for 90 mm,
- High SOTE up to 7 % per meter depth
- Connection size 1” BSPT
- For maintaining DO in aeration tan
- Membrane in EPDM , Silicon Rubber as wellwq
- Body in 20% Glass Filled PP

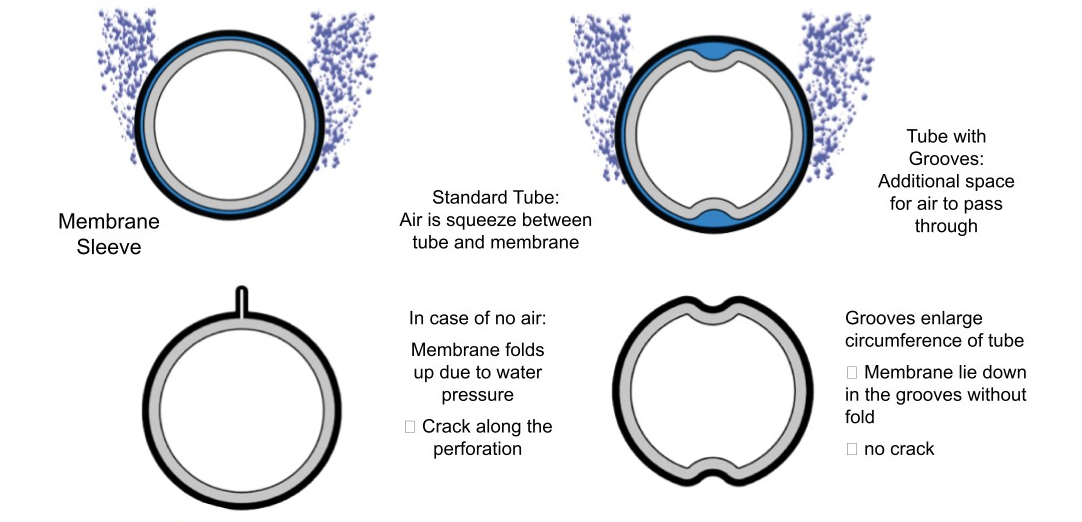

Tube Diffuser TD 65-2 Grooved

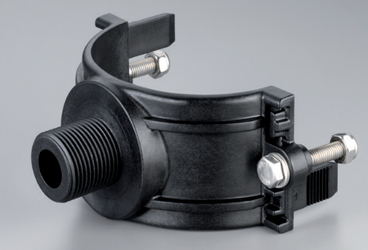

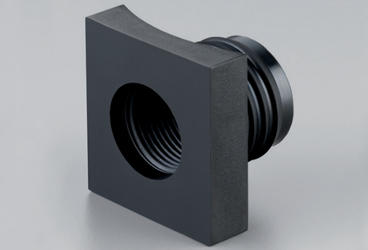

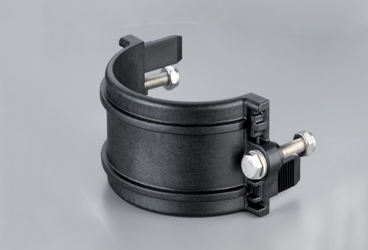

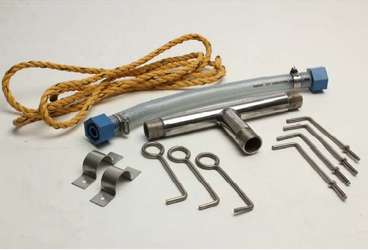

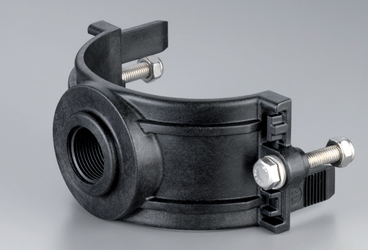

Accessories for Diffusers

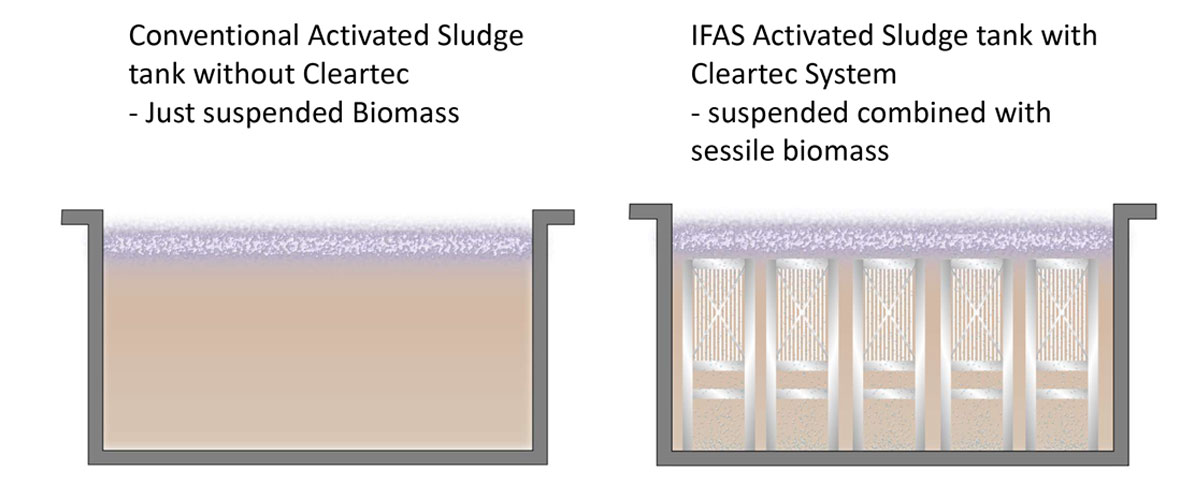

IFAS – Explanation

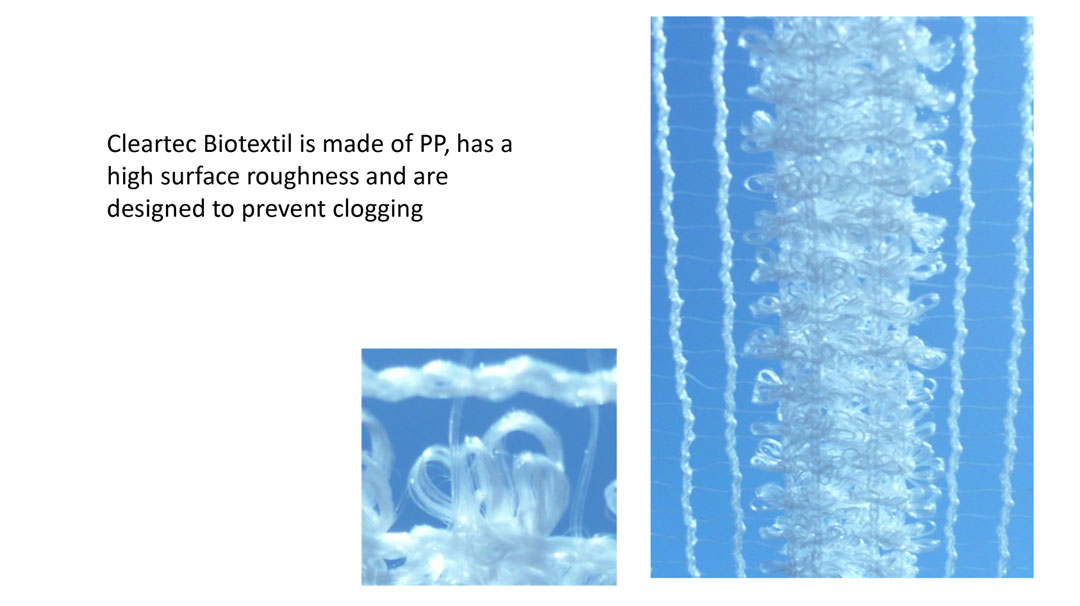

Cleartec - Biotextil

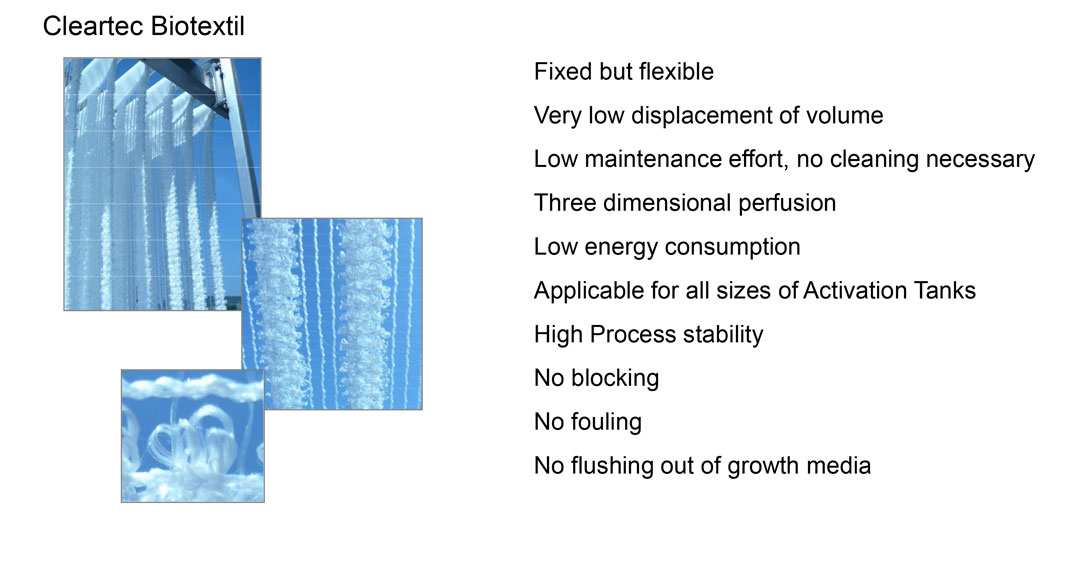

Cleartec – a closure look

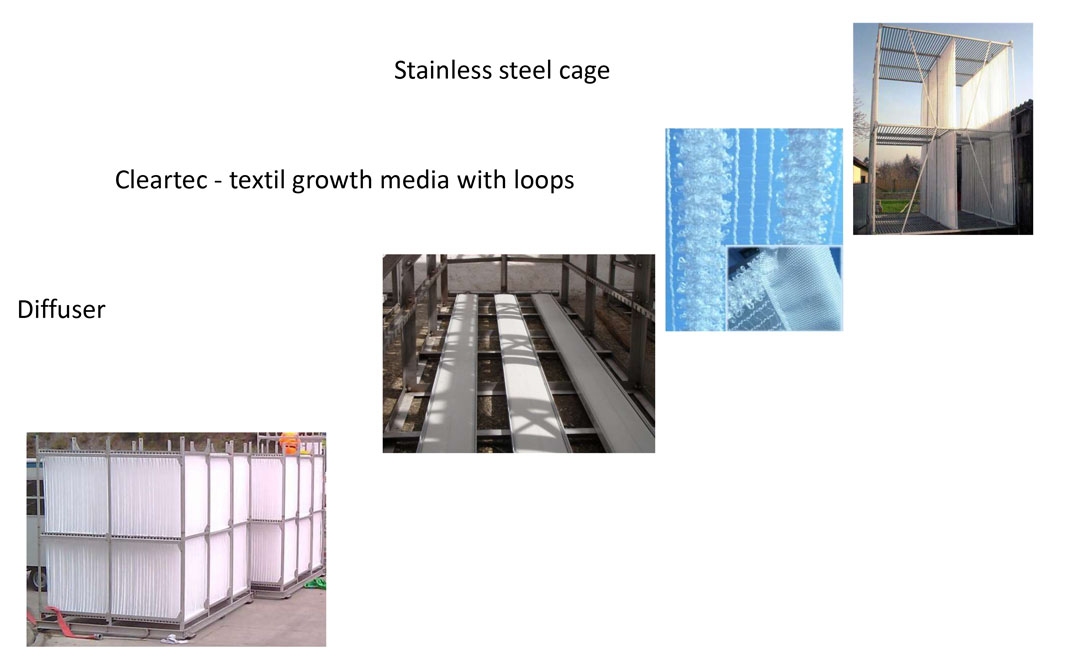

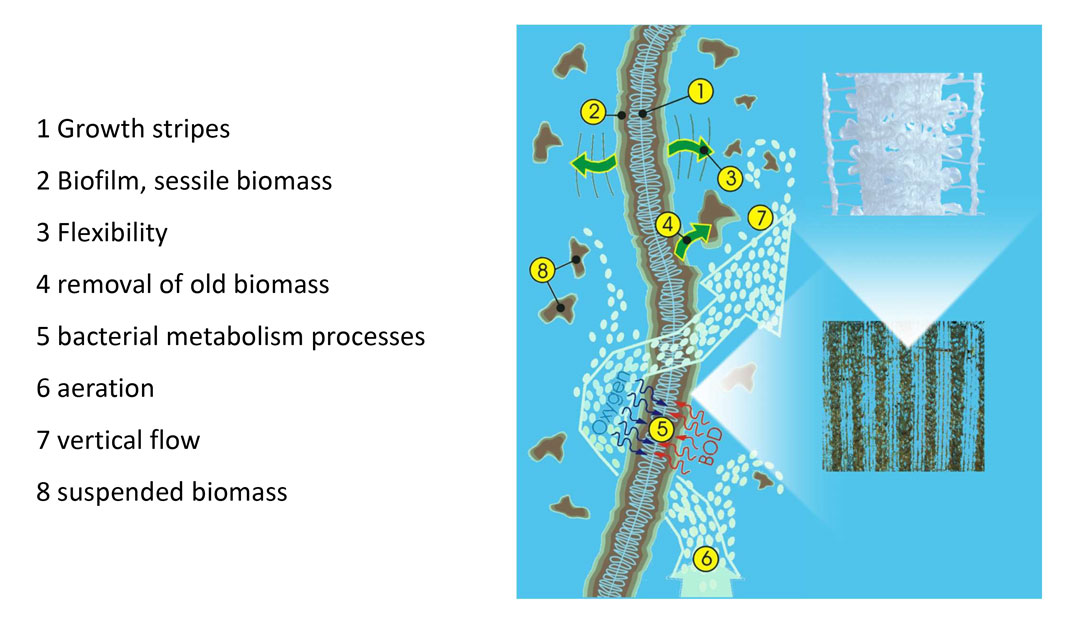

Cleartec – The System

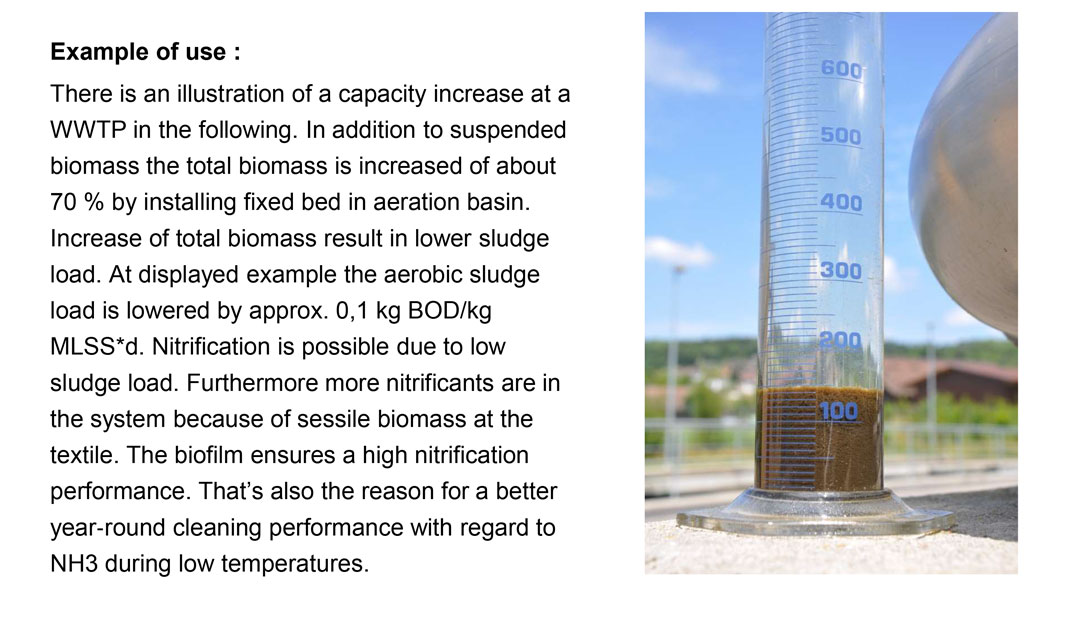

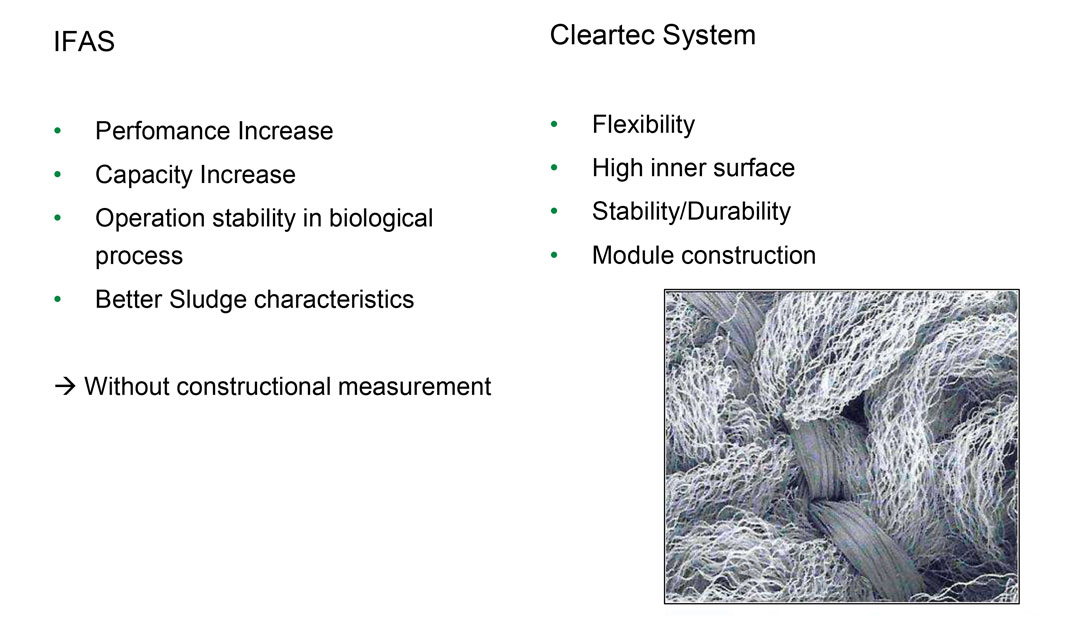

The System - advantages
